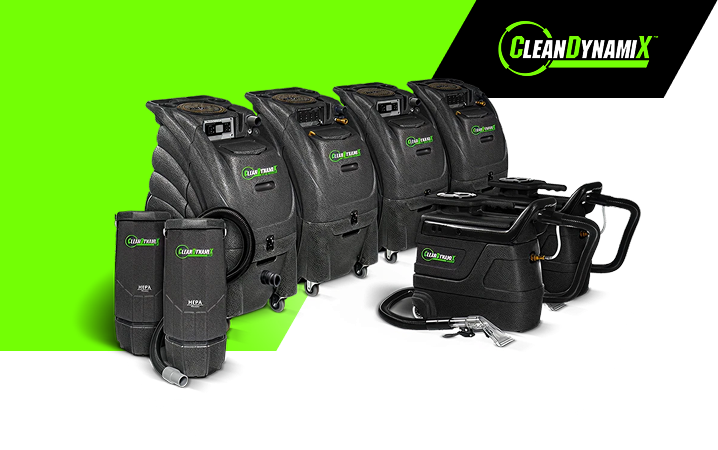

EQUIPMENT YOU CAN COUNT ON
CleanDynamiX is a name that is quickly becoming synonymous with quality and peace of mind. CDX is a quality supplier of portable extractors, HEPA vacs, multi-use sprayers and more. Our portables are backed by a 2 year warranty that ensures you have your equipment covered and working properly when you need it.

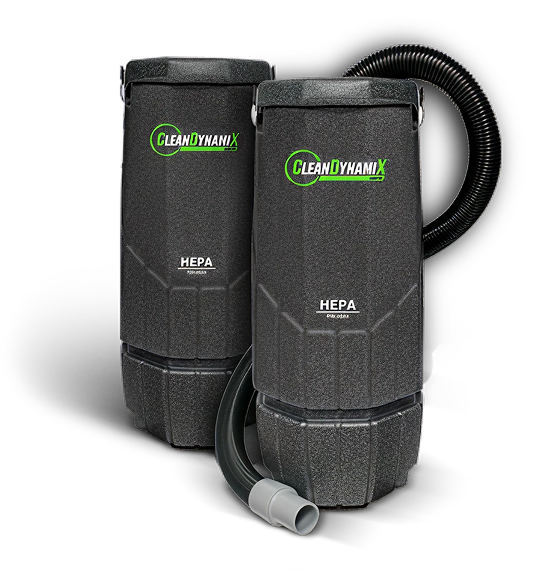

hepa Backpack Vacuum
> Fastest soil pick-up with high CFM airflow, making the Backpack significantly more proficient than traditional uprights.
> Collects the most soils, leaving exhaust air cleaner with a disposable, heavy-duty paper micro-bag mounted inside a washable cloth shakeout bag.
> Lightweight ergonomic design, with a cushioned back-pad that fits the curve of any operator’s back. The comfortable shoulder and waist belt design reduces fatigue, making work easier.
> 2 Lever-style latches lock the lid to the body and a static-dissipating vacuum hose securely threads into the backpack’s lid, allowing for right- and left-handed vacuuming. The interchangeable lid converts the Backpack into a powerful blower.
> Easy-to-reach On/Off power switch, quiet motor and 50-foot long safety power cord.
> 5-piece tool kit included on select models.
SPECS
APPLICATIONS
Designed for vacuuming carpet, hard floors and upholstery. Worn on the back to allow for easy and quick vacuuming while walking. Ideal for hallways, airplanes and commercial spaces.
Capacity: 10-Quarts
Airflow: 150 CFM
Power: 1340 Watts
Motor: 1.5 HP, 1-Stage
dB: 67
Amps: 11.5
Volts: 115 V
Static: Lift: 95
Weight: 10.5 lbs.
Height: 23”
CAPACITY IN QUARTS
AIRFLOW (CFM)
POWER (HP)

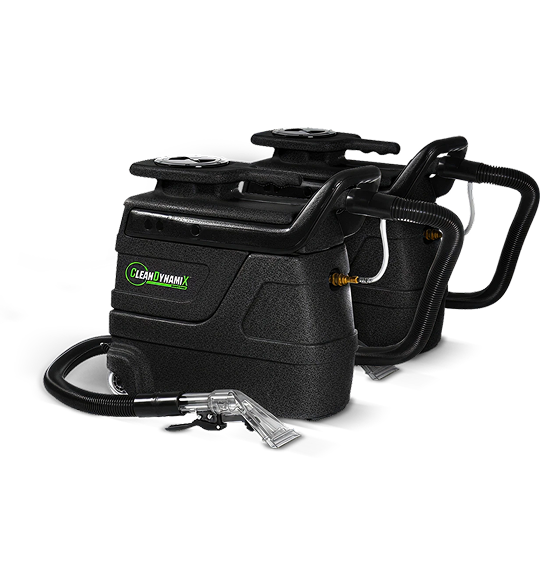

A Powerful Portable Extractor with Heat
> The Spot Extractor offers fast, efficient spot cleaning of carpets, rugs and upholstery.
> Lightweight and great for small upholstery and spot cleaning jobs.
> Heats extracting solution up to 200 degrees Fahrenheit with a 600 Watt in-line heater. The steel heater chassis is mounted in its own roto-molded tank and frame.
> A durable 55 PSI pump delivers extracting solution into the carpet.
> The 2-stage Ametek 804 Watt / 100 CFM vacuum motor efficiently recovers spent solution and soils which allows for faster carpet drying.
> Double ball-bearing urethane wheels and slide-out carrying handle make transport easy.
> Roto-molded polyethylene body withstands the toughest working environments and resist dents, chips and cracks.
> Includes (1) 20-foot, 16/3-gauge safety power cord.
SPECS
Model No: 50-4000
Tanks: Roto-Molded Polyethylene, 3-Gallon Solution and 3-Gallon Recovery Tank Capacity
Solution Pump: 55 PSI (100 PSI also Available)
Vacuum Motor: 2-Stage Ametek, 804 Watt, 100 CFM
Voltage: 115 Volts
Water lift: 76”
In-Line Heater: 600 Watt
Hoses and Tools: 1.25” x 15’ Solution and Vac Hoses, 4” Stainless Steel Upholstery Tool, Optional 9” Stainless Steel Wand
Power Cord: (1) 20-Foot, 16/3-Gauge Safety Power Cord
Dimensions: 25” L x 11” W x 29” H
Shipping Weight: 42 lbs.
55 PSI SOLUTION PUMP
804 WATT 2 STAGE VACUUM MOTOR (100 CFM)
600 WATT HEATER

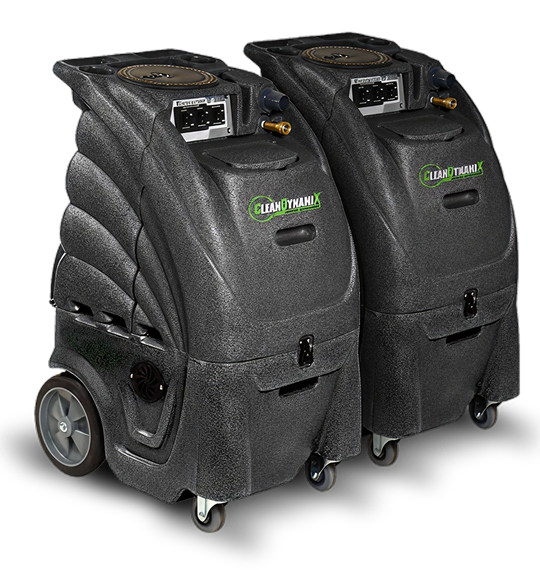

Superior Performance, Advanced Capabilities
> Powerful vacuum motors offer up to 205” water lift for efficient solution recovery that results in better extraction and faster carpet drying.
> High performance motors stay cool with an innovative air intake design that uses the vacuum’s own cooling fans to pull cool, outside air over the motors, reducing motor temperature and preventing overheating.
> Heated units include an in-line heater that lets you extract with 200 degree Fahrenheit solution!
> 12-gallon solution and recovery tanks allow for quick and easy fill and dump disposal, reducing downtime.
> Waist-high controls prevent bending and stooping to operate the machine. The controls are recessed in the machine and stay protected during use, in transit or in storage.
> 10” non-skid, non-marking wheels make stair climbing easy and do not scuff floors.
> Roto-molded polyethylene tanks withstand the toughest working environments and resist dents, chips and cracks.
> Includes 25-foot long safety power cord(s).
> Optional crush-resistant, 25-foot vacuum and solution hoses, “S” shaped stainless steel wand with dual spray jets and 4” stainless steel upholstery tool available.
SPECS
Solution Pump: 100, 200, 300, 500 or 800 PSI Available
In-Line Heated Units: 2000 Watt, up to 200º F
Vac Motor: Dual 2-Stage or Dual 3-Stage Available
Vac Power: Up to 205” Water Lift
Power Cord: (1) or (2) 25-Foot , 12/3-Gauge Safety Power Cords (Depending on Unit)
Wheels: 10” Transport Wheels
Dimensions: 27”L x 20” W x 38” H
UP TO 800 PSI SOLUTION PUMP
Dual 2-Stage or Dual 3-Stage VAC MOTOR
2000 WATT HEATER UP TO 200ºF
THE ULTIMATE SOLUTION IN HARD FLOOR CLEANING
Combines exceptional vacuum with the power of a 1200 PSI pump!
> The one 2-stage and one 3-stage vacuum motors allow for 170” of water lift for efficient solution recovery that results in better extraction and faster carpet drying.
> High performance motors stay cool with an innovative air intake design that uses the vacuum’s own cooling fans to pull cool, outside air over the motors, reducing motor temperature and preventing overheating. This allows for performance with less maintenance.
> Powerful 1200 PSI adjustable pump adjusts down too 400 PSI, providing the perfect pressure for cleaning everything from tile to concrete.
> 12-gallon solution and recovery tanks allow for quick and easy fill and dump disposal, reducing downtime. Auto fill and auto dump capability allows for constant working pressure from start to finish.
> Waist-high controls prevent bending and stooping to operate the machine. Adjustments can be made standing comfortably. The controls are recessed in the machine and stay protected during use, in transit or in storage.
> 10” non-skid, non-marking wheels make stair climbing easy and do not scuff floors.
> Roto-molded polyethylene tanks withstand the toughest working environments and resist dents, chips and cracks. They have a professional look with ultimate durability.
SPECS
Capacity: 12-Gallon Solution and Recovery Tanks
Vac Motors: (1) 2-Stage and (1) 3-Stage Lamb Ametek (Dual Motor)
Solution Pump: 1200 PSI (Adjusts Down to 400 PSI)
Water Lift: 170”
Volts: 110 / 120
Amp Draw: 19 / 16
CFM: 99
Wheels: 10” Transport Wheels
Power Cord: (2) 25-Foot, 12/3-Gauge Safety Power Cords
Dimensions: 27”L x 20” W x 38” H
Shipping Weight: 150 lbs.
1200 PSI PUMP (adjustable down to 400)
12 gallon capacity
99 cfm
MAXIMIZED EFFICIENCY,
INNOVATIVELY DESIGNED
Fast and powerful flood pumping for water damaged areas!
> A powerful 2-stage vacuum motor and 40 GPM flowthrough pump allows all waste water to be recovered at 40 gallons per minute.
> The auto pump-out feature works continuously, automatically dumping water so tanks don’t have to be emptied when full. 24-gallon capacity.
> The high performance motor stays cool with an innovative air intake design that uses the vacuum’s own cooling fans to pull cool, outside air over the motor, reducing motor temperature and preventing overheating.
> Waist-high controls prevent bending and stooping to operate the machine. The controls are recessed in the machine and stay protected during use, in transit or in storage.
> 10” non-skid, non-marking wheels make stair climbing easy and do not scuff floors.
> Roto-molded polyethylene body withstands the toughest working environments and resist dents, chips and cracks. Looks professional longer.
> Includes (1) 25-foot, 12/3-gauge safety power cord.
> Includes (1) 25-foot 2” wide vacuum intake hose and (1) 25-foot 2” wide pump-out hose.
SPECS
Capacity: 24-Gallon
Motor: (1) 2-Stage
Pump: (1) 3/4 HP totally enclosed, fan cooled, 1725 RPM Waste Dump Pump
Pump-Out Rate: 40.0 GPM
Water Lift / CFM: 110” / 120 CFM
Air Watts / Amps: 520 AW / 14.3 Amps
Vacuum Intake Hose: (1) 25-Foot, 2” Wide
Pump-Out Hose: (1) 25-Foot, 2” Wide
Overflow Protection: Automatic On/Off
Power Cord: (1) 25-Foot, 12/3-Gauge Safety Power Cord
Dry Weight: 106 lbs.
40 Gallons per minute pump-out rate
24 gallon capacity
120 cfm
PROFESSIONAL SPRAYERS
Built for contractor grade use.
• easy fill funnel top
• 30” heavy duty reinforced hose
• chemical resistant Viton® parts
• durable poly extension
• fully assembled
• fan and adjustable spray tips
• deluxe comfort grip trigger
• translucent tank with fill markings
• commercial grade serviceable pump
• limited lifetime tank warranty
• extra thick poly wall construction
• corrosion resistant seals and gaskets
• sturdy metal pump rod
• industrial strength hose
• built for years of service
CDX industrial SPRAYERS
The CDX Series Industrial Sprayers are a chemical resistant sprayer designed especially for the Industrial and Jan-San markets. Offers the utmost in durability with its brass and poly components.
- Heavy-duty brass extension
- Viton® parts for maximum chemical resistance
- Comes with pin-to-cone & fan spray tip
- 1, 2, 3 gallon models available
- Heavy duty braided hose
- Fully field repairable
Viton® is a registered trademark of Dupont Performance Elastomers
CDX 2600 Heavy-duty Fogger
The CDX heavy-duty fogger from CleanDynamiX are used for many applications around the world including building restoration and insect control. It is ideal for most industrial and Jan-San applications because of its compact size, stability, and capacity. The handle and tank are one-piece construction and the unit is rotation-molded for maximum strength. The CDX 2600 has an 18 in. flexible hose for directing the spray to specific sites. Each fogger is individually built and tested for performance.
cdx 1.5 quart sprayer
- 1.5 quart translucent tank to see liquid level
- Heavy duty tank
- Steel pump rod
- Extended nozzle lance
- Adjustable brass nozzle
- Chemical resistant gaskets
